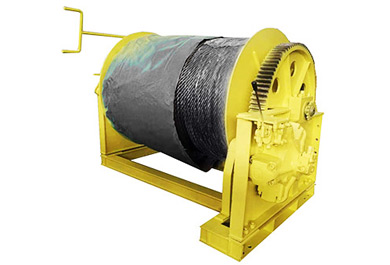

Hydraulic mooring winches are a type of hydraulic winch. He is powered by a hydraulic pumping station system that drives the winch. Hydraulic mooring winches are also effective when berthing or berthing, and have many functions such as drifting, supporting and positioning during loading and unloading.


Model	Reel load(KN)	Theoretical winch speed(m/s)	Rope diameter(mm) x rope capacity(m)	Support load(KN)	Recycling Load(KN)	Reel diameter(mm)	Creeping speed(m/s)	No load speed(m/s)	Rope minimum breaking load(KN)
NYX-50	50	0.25	φ20.5 x 180	150	25	90	0.125	0.5	180
NYX-80	80	0.25	φ26 x 200	240	40	146	0.125	0.5	292
NYX-125	125	0.25	φ30 x 200	310	60	190	0.1	0.5	381
NYX-160	160	0.25	φ37.5 x 250	470	80	297	0.1	0.5	595
NYX-200	200	0.16	φ41 x 250	590	100	360	0.08	0.5	720
NYX-250	250	0.16	φ44.5 x 250	730	125	427	0.08	0.5	854
NYX-315	315	0.13	φ52 x 250	940	155	582	0.065	0.5	1165
NYX-400	400	0.13	φ56 x 250	1080	200	669	0.065	0.5	1339
