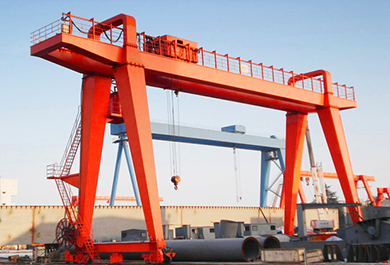

Double Girder Gantry crane

Lifting Capacity: 0.5-100 ton or other
Span: 3- 31.5 m or other
Lifting Height: 2m- 18m or other

Note: We can design and manufacture the crane according your requirments and working conditions.

Get Quotation

Overview

Double Girder Gantry crane is widely used for conveying materials outdoors in mining, seaports, railways and open air storage. It is a kind of bridge crane through the support legs at both sides and beam on the ground. This equipment is made up of trolley, the upper beam, the end beam, the lower beam, supporting legs, driver's room and electric control system and so on.

According to the number of main girder, Gantry crane can be divided into single girder and double girder.

According to the shape of the supporting leg in the plane, Gantry crane can be divided into type A, type U, type C and type L, which type C and type L are belong to single girder gantry crane.

According to the different fetching device, Gantry crane can be divided into hook, grab, or electromagnetic sucker (gantry crane with electromagnet), two or three devices also be used simultaneously.

According to the number of supporting legs, it can be divided into gantry crane and semi-gantry crane. One end of the semi-gantry crane is the supporting leg, which to run on the ground, and the other end is the same mechanism as the bridge crane to run on the track.

Name	Model	Specification
Gantry crane	MG (hook)	200t and below
	MC (electromagnetic)	32t and below
	MZ (grab)	10t and below
	MDG (single girder hook)	32t and below
	MH (single girder hoist)	32t and below
	MDC (single girder electromagnetic)	15t and below
	MGE (double trolley hook)	（10t+10t）and below
	MGB (double girder and semi-gantry hook)	32t and below
	MCB (double beam and semi-gantry electromagnetic)	20t and below
	MGEB (double girder and double trolley, semi-gantry hook)	（16t+16t）and below
Super large crane	ME(double trolley)	600t

If you have interest in our products, Fill and copy the specification below, then click the type you need and send us the specification. We will quote you a very detail solution with in 24 hours.
Note: We can design and manufacture the crane according your requirments and working conditions.

Load capacity: ?
Span: ?
Lift height: ?
Power Voltage: ?
Cantilever Length: ?
Speed Request: ?
Control Mode Request: ?
