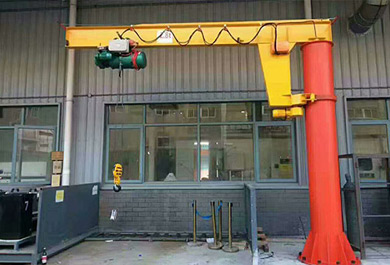

Column Mounted Jib Crane

Loading capacity:0.5 ~ 20 t
Lifting height:3 ~ 10 m
Jib length:2 ~ 10 m
Slewing degree:0 ~ 360°
Power supply:220 ~ 690V,50/60HZ,3Phase

Note: The above parameters are for reference only, and can be designed and manufactured according to user's needs.
General description

1.Column mounted jib crane work for light intensity, crane by post, rotating arm rotation drive device and electric hoist, column bottom through on the concrete foundation with anchor bolt, cantilever rotary driven by cycloidal pinwheel reducer, electric hoist on the cantilever beams as a straight line running from left to right, and lifting heavy objects. Jib crane for hollow steel structure, light weight, big span, lifting weight, economy and durable.Jib Crane is a new generation of the hoist equipment developed to meet the requirement of modernized production.  And Jib Crane adopts West Germany technology , has the features of reasonable structure, easy operating and high efficiency, etc . It is widely used in mines, workshop, warehouse , wharf,etc.

2.Fixed column slewing Jib crane is mainly composed of top column, low column, main girder, main girder pole, electric hoist, rotation mechanism and electrical system, etc.Normally control model of jib crane with remote control or pendent line with press button or both.

 Specific details
  • Loading capacity: 0.5~20ton ;
  • Lifting height:3~10m ;
  • Jib length:2~10m;
  • Slewing degree:0~360°;
  • Power supply:220~440V,50/60HZ,three phase or customized design
 Application
  • Factory,workshop,warehouse,store;
  • Logistic,dock,port , freight yard ;
  • Construction building,mine,etc.
 Advantage & feature
  • Installation with high strength bolt connection;
  • Convenient in operation,safe and turn to flexible;
  • Low noise,commodious cabin and good looking;
  • High quality and efficiency, competitive price;
  • Reasonable and simple whole structure,Light self-weight, conform to the state standards;
  • Inexpensive handling systems doesn't require modification of the building structure around.
